Veterinary Solution
Complete systems that incorporate our technology with sophisticated design.
MirEye Intelligent Veterinary
MirEye focuses on the design and development of high-tech imaging solutions and exceptional after-sales service and support.
We incorporate advanced technology in our fully integrated veterinary x-ray solutions to enable the body part auto-thickness detection (ADT) feature. This method automatically measures the thickness of the patient’s anatomy, provides the appropriate technique to the x-ray generator, significantly optimises the image quality, prevents an unnecessarily high exposure to the patient, and ensures a smooth acquisition workflow.
Design
Ergonomic design is the main focus here. Equipment that is comfortable to work around, easy to access and clean while keeping patient positioning simple are just a few factors our team incorporates when designing solutions.
Being an experienced original equipment manufacturer (OEM) also allows our team to readily offer design elements that incorporate many requests of veterinarians and their staff.
MirEye Collimator
MirEye’s unique and patented veterinary x-ray collimator with a 3D camera offers body part auto-thickness detection (ATD).
The collimator ATD Module automatically measures the thickness of the anatomy and provides more accurate exposure values (kVp and mAs) to the x-ray generator.
Specifications
- Maximum Radiation Leakage: 150KV 4mA.
- Maximum coverage range: ≥430m×430m.
- Light Source: LED.
- Delay Time: 30s.
- 3D camera embedded for ATD (Auto-thickness Detection)
- Minimum Inherent Filtration: 2mm AI equivalent.
- Control method: Manual.
- Power Input: DC24V.
- Dimension mm (L x W x H): 200 x 266 x 189.
- Weight (Kg): 5.5.

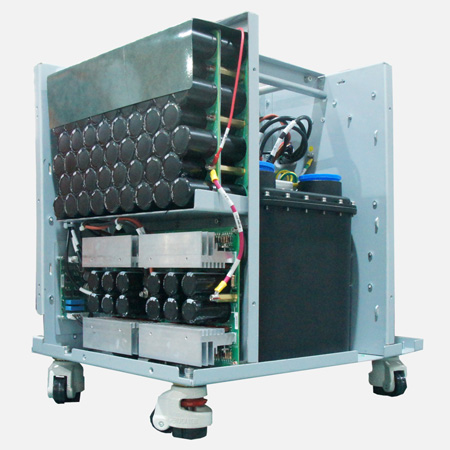

MirEye High-Frequency Generator
- Supports. single-phase power supply.
- Fully digital step-less variable speed rotating anode control technology.
- Small size and high-power density.
- The fuel tank can withstand high voltage level (224kV).
- Using DSP+FPGA control architecture, the performance is stable and reliable.
- Modular and platform design, easy to install and maintain.
- Standard AEC function, multi-speed anode drive function.
- Practical roller configuration, convenient for use in the pet hospital environment.
Specifications
- Max Power : 32kw
- Mains Phase: Single
- Input power: 220VAC±10%,
- Capacitor energy shored based
- Max Amperage input: 16Amp
- KV Range : 40～150kV
- mA Range : 10～400mA
- Exposure Time Range : 1ms～10000ms
- Size(W*D*H) : 523mm*420mm*475mm
- Weight (Kg): 68
MirEye X-MIR
Easy to install and operate, our veterinary digital imaging systems incorporate advanced technology to enable auto-thickness detection (ATD). This measures the thickness of the patient’s anatomy to be imaged in real time, optimizing image acquisition workflow. All through an optional wireless workstation.
Key Features
- Collimator with 3D camera for ATD
- 4-way floating table
- Restraining straps
- Urine track
- 15.6-inch touchscreen
- 32kw, single-phase high-frequency generator
- Capacitor-Based energy storage
- Auto-tube calibration
- Max. Amperage input: 16 Amp
- Canon E7239X tube
- 59 x25.6 x 77.2 inch / 1500 x 650 x 1960 mm
MirEye X-PD
MirEye’s unique and patented veterinary x-ray collimator with a 3D camera offers body part auto-thickness detection (ATD). The collimator ATD Module automatically measures the thickness of the anatomy and provides more accurate exposure values (kVp and mAs) to the x-ray generator.
Key Features
- Collimator with 3D camera for ATD
- 4-way floating table
- Restraining straps
- Urine track
- 15.6-inch touchscreen
- 32kw, single-phase high-frequency generator
- Capacitor-Based energy storage
- Auto-tube calibration
- Max. Amperage input: 16 Amp
- Canon E7239X tube • 59 x 35.6 x 83 inch / 1500 x 904 x 2110 mm
Custom Design
MirEeye is fully capable of custom design, development and manufacture of any veterinary x-ray solution for your OEM needs. Please contact us to learn more.
Get a Quote
Veterinary Brochure
Simply click the download button below and start exploring our Veterinary brochure! If you have any questions or concerns, our friendly and knowledgeable customer service team is always here to help.
